Product Overview

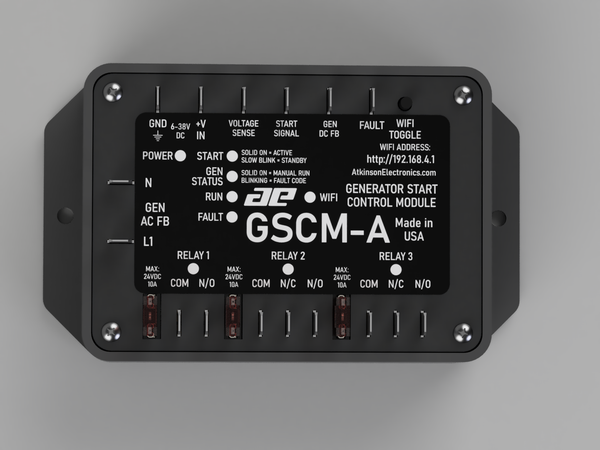

The Generator Start Control Module-Adjustable (GSCM-A) is a fully configurable micro-processor based generator start controller that is designed to auto start and stop gas, diesel, or propane generators.
The GSCM-A is able to broadcast a Wireless 2.4GHz Wifi network that can be connected to with a phone or tablet in order to change the configuration settings.
It supports severeal types of 3 or 4 wire gas-generator control: momentary, maintained or key ignition. It automatically disconnects the starter when a minimum generator AC Hz output is measured. It has a adjustable crank time and over and under frequency shut down. The GSCM-A is powered by 6-38 volts DC or the generator battery and can monitor the battery voltage and start the generator to charge its own battery. The GSCM-A uses the generator AC output to know when the generator has started and is running.
The GSCM-A also includes a third relay contact that can be configured to do one of several functions. Some of the functions available are a glow-plug start timer, acting as a generator power switch, a manual choke control, generator priming control, and a load control(by way of external load transfer switch)
Atkinson Electronics cannot make a recommendation of which generator to use. However, for reference here is a list of those generators that have been used successfully and for which we should already have hookup diagrams.
Champion 201489
Duromax XP9000iH
Duromax XP13000HX
Honda EU7000is
Onan HDKxx Series
Onan HGJxx series
Predator 5000
Predator 11500
Predator 13000
Westinghouse WGen3600DFc
Westinghouse iGen8200DFc
Westinghouse iGen11000DFc
This not a full list so please contact cbdsales@atkinsonel.com for the proper hookup diagram for your generator.
Please include the generator make & model, inverter brand, & battery bank voltage.
Note: Most standby generators will not work with the GSCM-A. Standby generators have their own control circuitry for monitoring utility power.
Also be aware that the GSCM-A does not connect to the internet or other WiFi networks. The wifi signal broadcast by the GSCM-A is only a temporary local network used for setting the configuration of the device.
Dimensions: L: 5.5” x W: 3.5" x H: 2.0"
